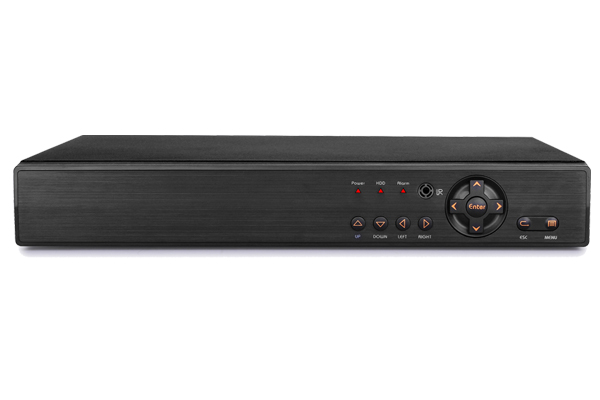

AHR-7808NH |
|
| |
General Features： |
|
| |
●8CH 5 in 1 1080N DVR, 1*SATA
●1080N recording and playback
●Support P2P Cloud and XMeye
●1CH VGA and 1CH HDMI output
●Product Size: 260mmx210mmx45mm
|
| |
|
| |
|
|
|
| |
|
|
|
|
Model No.
|
AHR-7808NH
|
|
System
|
Main Processor
|
Hisilicon Hi3520D V300
|
|
Operating System
|
LINUX
|
|
Control Mode
|
USB mouse, Network
|
|
System Resource
|
Six fold operation simultaneously: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
|
|
Video
|
Video Standard
|
PAL / NTSC
|
|
Multi Mode Input
|
AHD/TVI/CVI/CVBS/IPC (5 IN 1)
|
|
Input
|
8CH BNC
|
|
Output
|
1CH VGA, 1CH HDMI
|
|
Audio
|
Input
|
4CH
|
|
Output
|
1CH
|
|
Alarm
|
Input
|
Not Support
|
|
Output
|
Not Support
|
|
Recording
|
Video/Audio
|
H.264/ADPCM
|
|
Encode Resolution
|
1080N(960*1080)
|
|
Encode Capability
|
Pure Analog: 8CH*1080N (960*1080); 8CH* 720P (1280*720); 8CH*960H(960*756)
Pure Network: 16CH*1080P(1920*1080); 4CH*5MP(2560*1920)
Mixed: 4CH*Analog 1080N(960*1080) + 4CH*Network 960P(1280*960)
|
|
Decode Capability
|
8CH*15fps@ 1080N
|
|
Display
|
Display Split
|
1/4/8/9 Screen
|
|
Display Resolution
|
1080P(1920*1080)
|
|
Motion Detection
|
Each channel can set 192(16*12) detection area
|
|
Tour Display
|
Support
|
|
Playback & Backup
|
Local Playback
|
8CH*18fps@AHDNH/1080N
|
|
Playback Function
|
Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording files can be viewed by dragging the progress bar back and forth
|
|
Backup Mode
|
U-disk /USB-HDD/Network
|
|
Network
|
Physical Interface
|
RJ45 10M/100M
|
|
Network Function
|
TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS,DNS Binding
|
|
Remote Operation
|
Monitor, PTZ control, Playback, System setting, files download, Log information
|
|
Smartphone
|
Support Windows, iPhone (iOS) and Android system
|
|
Wifi
|
Support 3G Wifi by USB
|
|
Others
|
Support Coaxial Control, QR Code, iCloud, P2P(XMeye App)
|
|
Hard Disk
|
Hard Disk
|
Support 1* SATA port, Max 6TB
|
|
Space Occupation
|
Video Record: 21G@720PCH/DAY; 24G @960P/CH /DAY; 42G @1080P/CH /DAY;
Audio Record: 691.2M/DAY/CH
|
|
Port
|
USB
|
2*USB2.0
|
|
PTZ
|
RS485
|
|
Other
|
Power Supply
|
DC 12V, 2A (3A is optional)
|
|
Working Environment
|
-10℃~+55℃/10~90%RH/86~106Kpa
|
|
Size
|
260*210*45mm
|
|
Gross Weight
|
1.5Kg (Not including HDD)
|
|
Package
|
10pcs DVR in 1 Carton, Carton Size: 36.2*29*63.2cm
|
|
|
