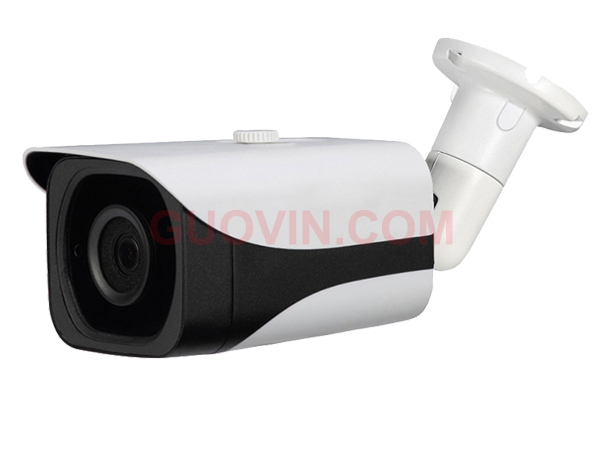

IPC-FBK70-BL200E |
|
| |
General Features： |
|
| |
Super Starvis IP Camera
Resolution: 1080P / 2MP
with Starvis Lens
Warm Light Array LED
Al-Alloy Housing, IP66
|
| |
|
| |
|
|
|
| |
|
|
|
|
Model NO:
|
IPC-FBK70-BL200E
|
|
Camera
|
|
Image CMOS Sensor
|
1/2.9" SONY Starvis CMOS Sensor,
|
|
DSP
|
Hi3516E
|
|
Resolution
|
2.0M Pixel
|
|
Effective Pixels
|
1920(H)*1080(V)
|
|
Electronic Shutter
|
1/50-1/10000Sec
|
|
Motion Detection
|
Support
|
|
Scanning System
|
Progressive
|
|
Sync System
|
External
|
|
Privacy Masking
|
Support, Up to 4 areas
|
|
S/N Ratio
|
≥52dB
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto/Manual
|
|
Digital Noise Reduction
|
3D NR
|
|
Wide Dynamic Range
|
D-WDR
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
|
Video and Audio
|
|
Video Compression
|
H.264
|
|
Video Output
|
Main stream: 1920*1080 @20fps
|
|
Audio Processing
|
G.711a/ G.711u
|
|
Alarm
|
Not Applicable
|
|
Lens
|
|
Focal Length
|
Starvis 4mm Lens ( 6mm is optional )
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Starvis F1.2 Lens
|
|
Lens Pixels
|
3.0M Pixels
|
|
Night Vision
|
|
Infrared LED
|
4pcs Warm Light Array Starvis LED
|
|
Low illumination
|
0.001Lux@F1.2
|
|
Day & Night
|
Full Color in day and night
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Network Protocol
|
TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 Optional)
|
|
ONVIF
|
Support ONVIF
|
|
Smart Phone
|
Support iPhone,iPad, Android and Windows
|
|
Browser
|
Support IE, Chrome, Firefox, Safari
|
|
Sotware
|
support iCloud, XMeye App, CMS software
|
|
POE
|
POE is optional
|
|
General
|
|
Housing
|
Al-Alloy Case, White(Body)+Black(Front) Color
|
|
IR Cut
|
Yes
|
|
Power Supply
|
DC 12V, 48V POE(optional)
|
|
Working Temperature
|
-10℃～50℃
|
|
Weatherproof Std.
|
Support waterproof, IP66
|
|
Dimension
|
312(W) x85(H) x85(D)mm
|
|
Weight
|
1.2Kg
|
|
|
