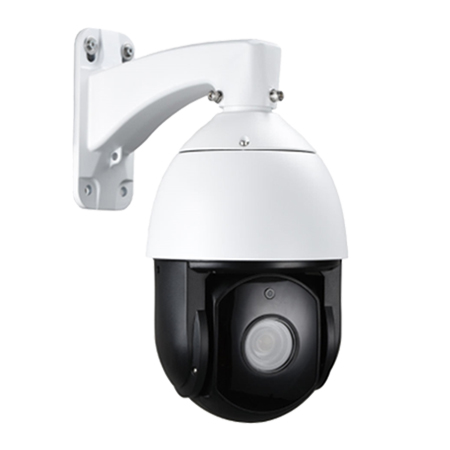

QR-TSHR6-HD200/HD500 |
|
| |
General Features： |
|
| |
6 inch Midium Speed Dome Camera
AHD /TVI /CVI:1080P & 5MP
20X Optical Zoom Lens
5pcs Array IR LED+3pcs Lasser LED
IR Range: 150M
Al-Alloy + Plastic housing, IP66
|
| |
|
| |
|
|
|
| |
|
|
|
|
Model No .
|
QR-TSHR6-HD200
|
QR-TSHR6-HD500
|
|
Image sensor + DSP
|
SONY IMX307+NVP2441H
|
OV05A10+NVP2477
|
|
Horizontal resolution
|
1080P / 2MP
|
5MP
|
|
Effective pixel
|
1920(H)x1080(V)
|
2704(H)x1950(V)
|
|
Signal model
|
PAL / NTSC
|
|
Minimum illumination
|
Color: 0.01Lux, B/W: 0Lux
|
|
S/N ratio
|
>52dB(Enhanced)
|
|
Backlight compensation
|
On/Off
|
|
White balance
|
Auto
|
|
Electronic shutter
|
PAL:1/50~1/10000 S NTSC:1/60~1/12000 S
|
|
Pan/Tilt Range
|
Pan range: 360°endless; Tilt range: 90°(180° Auto Flip)
|
|
Pan/Tilt Speed
|
Min 0.01°, Max 40°/S
|
|
Focus Length
|
4.7-94mm
|
|
Optical focus
|
20X Optical Zoom
|
|
Presets
|
256 preset
|
|
Focus
|
Auto / Manual / Push Auto , the use of high-performanceDSP
to realize complete digit and ultra-high speed focus function
|
|
IR distance
|
150M
|
|
Cruise track
|
8 groups, each group for 16 presets
|
|
Patrol track
|
4 groups, each group record 3min
|
|
Function support
|
AB scan, Patrol track,Guard position, Ratio zoom, Timing
function, Dome camera's title
|
|
Rotation range
|
Horizontal 360°unlimted rotation, Vertical 90°,auto reversal
|
|
Communications
|
RS-485, PELCO D, PELCO P
|
|
Power supply
|
DC12V/4A
|
|
Waterproof Standard
|
IP66, Outdoor using
|
|
Work environment
|
-20°C~+50°C (select temperature control accessories), <95%RH
|
|
Package Size
|
320*320*435mm
|
|
|
