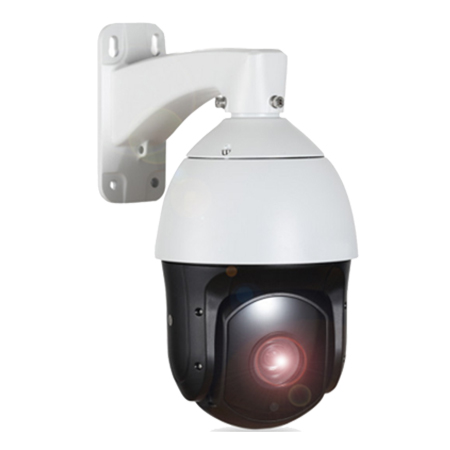

Model No .
|
QR-TSHT6-S200D
|
QR-TSHT6-S500D
|
|
Image sensor + DSPi
|
SONY IMX307 + Mstar313
|
SONY IMX335 + Mstar316
|
|
Compression Mode
|
H.265 / H.264
|
|
Horizontal resolution
|
1080P / 2MP
|
5MP
|
|
Effective pixel
|
1920(H)x1080(V)
|
2704(H)x1950(V)
|
|
Minimum illumination
|
Color: 0.01Lux, B/W: 0 Lux
|
|
S/N ratio
|
>52dB(Enhanced)
|
|
Backlight compensation
|
On/Off
|
|
White balance
|
Auto
|
|
Electronic shutter
|
PAL:1/50~1/10000 S NTSC:1/60~1/12000 S
|
|
Pan/Tilt Range
|
Pan range: 360°endless; Tilt range: 90°(180° Auto Flip)
|
|
Pan/Tilt Speed
|
Min 0.01°, Max 240°/S
|
|
Focus Length
|
4.7-94mm
|
|
Optical focus
|
20X Optical Zoom
|
|
Presets
|
256 preset
|
|
Focus
|
Auto / Manual / Push Auto , the use of high-performanceDSP
to realize complete digit and ultra-high speed focus function
|
|
IR distance
|
7pcs Array IR LED+3pcs Laser LED, 200m Range
|
|
Cruise track
|
8 groups, each group for 16 presets
|
|
Patrol track
|
4 groups, each group record 3min
|
|
Other scan
|
Support Horizontal scan, deuce area scan, scan random
|
|
Rotation range
|
Horizontal 360°unlimted rotation, Vertical 90°,auto reversal
|
|
Rotation speed
|
Horizontal & Vertical Min 0.01°, Max 200°/S
|
|
Communications
|
RS-485, PELCO D, PELCO P
|
|
Video compression
|
H.264 Main Profile encoding ; MJPEG / JPEG Baseline encoding
|
|
Audio compression
|
G.711, G.726
|
|
Primary stream
|
1920(H)x1080(V) @25fps
|
2704(H)x1950(V) @20fps
|
|
Video bit rate
|
32Kbps-16Mbps continuously adjustable, support CBR / VBR
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Network protocol
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、
FTP、NTP、PPPOE、SMTP、UPNP
|
|
ONVIF
|
Support
|
|
Power supply
|
DC12V/4A
|
|
Waterproof Standard
|
Support IP66 & Outdoor using
|
|
Work environment
|
-20°C~+50°C (select temperature control accessories), <95%RH
|
|
Package Size
|
320*320*435mm
|
