QR-TSHR6-ST200M-4G





QR-TSHR6-ST200M-4G


General Features:

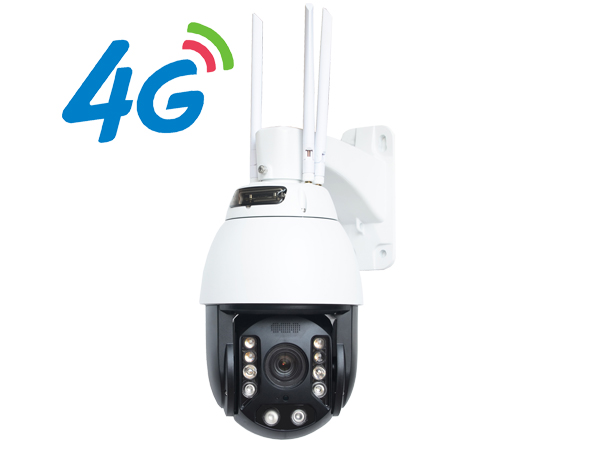

4G WiFi 6 inch PTZ Camera
Network: 4G:FDD-LTE/TDD-LTE
               3G:WCDMA/TD-CDMA
       WiFi:802.11/b/g/n
20X Optical Zoom Lens(4.7-94mm)
SONY 1080P Starvis CMOS
Support TF card storage
Support Two way Audio
8pcs Array IR LED, 150M Range
Al-Alloy+ABS housing, IP66

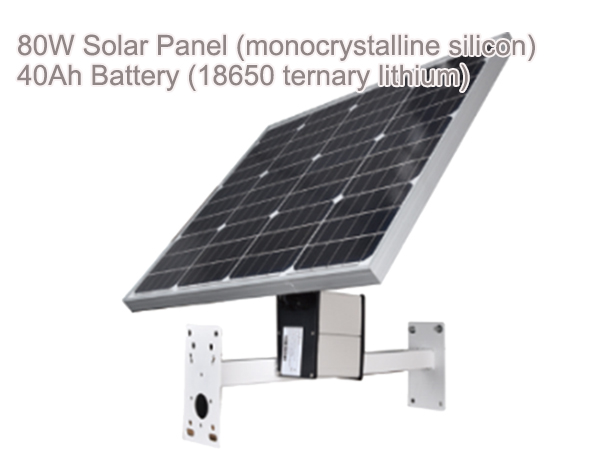

80W Solar Panel+40AH Battery for choice






Model

QR-TSHR6-ST200M-4G

CPU

Hi3516E V200

Sensor

1/2.8" SONY Starvis CMOS IMX307

Resolution

2MP (1920*1080)

APP & CMS

 Mobile- APP:  CamHi    PC- CMS : HiP2P

Lens

4.7mm~94mm

ZOOM

20X Optical Zoom

Minimum illumination

0.01Lux

Day/night mode

Support IR-cut

IR distance

150M

Storage function

Support TF card storage, Max 128G

Motion detection

4 separate test areas can be set Sensitivity can be set

Alarm linkage

Send pictures by Email; pictures and videos uploaded to the FTP server;

Manual speed

0.5-100°/S

Preset speed

100°/S

OSD

OSD name, time, date, information overlay

Video processing

Support H.265 / H.264

Network interface

1 RJ45 Ethernet interfaces ,10/100M self-adaption;

Suppert:CP/IPHTTPTCPICMPUDPARP, IGMPSMTPFTPDHCPDNSDDNSNTPUPNPRTSP

Band information

WiFi AP802.11/b/g/n

TDD-LTEBand 38/39/40/41

FDD-LTEBand 1/3

WCDMA: B1/B8

TD-SCDMA: Band 34/39

GSM/GPRS/EDGE: 900/1800

Preset

128

A-B Scan

1

cruise

4 groups

Preset number of cruise groups

10 preset/ groups

waterproof

IP66

Lightning protection

4000V

Working temperature

(-20℃~+60)

Grosss Weight

3.9KG
