General Features:

  • 1MP /2MP Optional
  • Support cloud /TF Card storage
  • Support WIFI, AP hotspot connection
  • Support two-way audio intercom
  • Voice alarm, picture push, auto tracking

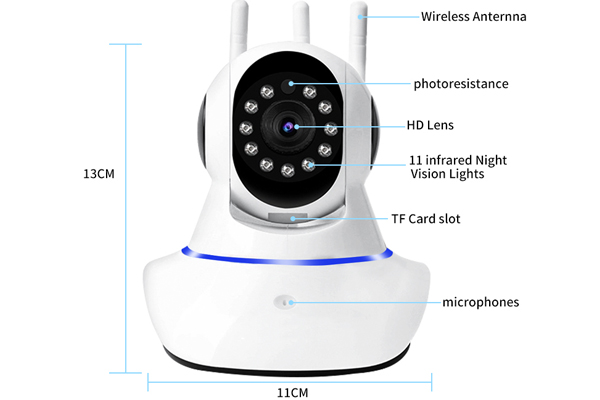

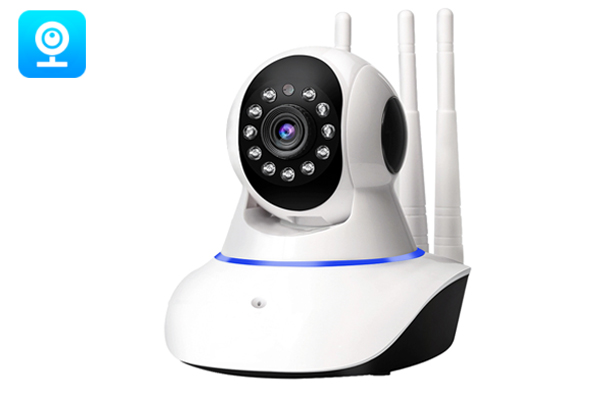

 V380 THREE ANTENNA WIFI Camera



Model number: Q11
APP: V380 Pro
Main chip: AK3918E
SENSOR: SC1245
Pixel: 1MP/2MP
Lens 3.6mm Horizontal View Angle:80°
View screen rotates rotates -Horizontal:0-355° Vertical:-20°to 90°
Video format: H.265/25FPS,HD(720P)
Night vision: IR-CUT switch Automatic,5-10Meter (It varies from environment)
LED QTY: 11PCS Infrared LED
wifi antenna pattern: External  strip antenna * 3pcs
Minimum illumination: 0.02Lux@(F2.0,VGC ON),O.Luxwith IR
Network interface: Without
wireless protocol: WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol)
Audio : Built-in omnidirectional noise reduction microphone and speaker, support two-way audio and real-time transmission, ADPCM audio compression standard, self-adapt to code stream
Network Video protocol: Not support ONVIF, Not support NVR
Alarm: Support voice alarm, picture push
storage: Cloud storage :Micro SD/TF(Max 128G)
Power: DC5V/1.6A(including AC Adapter)
working environment: -10°-50°C Humidity< 95%(no condensation)
Install method: Flat, ceiling,Wall (including bracket)
