C15-HD





C15-HD


General Features:

  •  5.0MP pixel
  • Support cloud/ TF card storage(Max 128GB)
  • support WIFI, AP hotspot and RJ45 Network
  • Two-way voice intercom
  • alarm, picture push,motion detection auto tracking
  • IP66 Waterproof

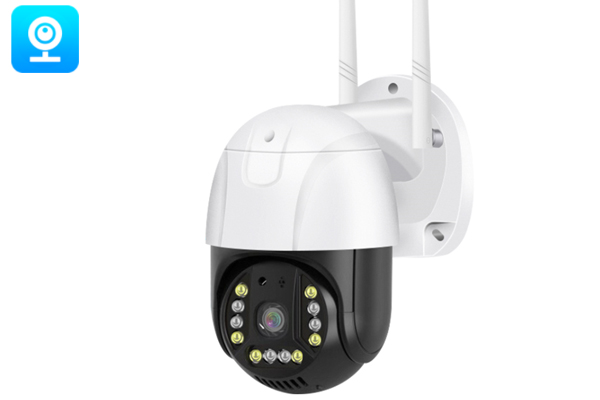

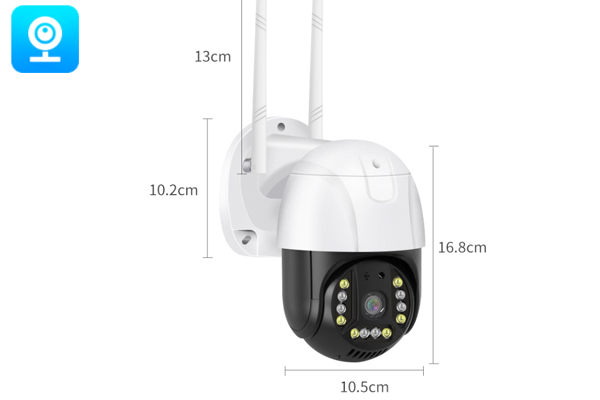

 v380 pro APP 5.0MP IP66 Waterproof outdoor PTZ Camera


Model: QR-C15
APP: V380 Pro
System structure: Embedded Linux system, ARM chip structure
Chip: AK3918E
Resolution: 5.0MP , 2560*1920
Sensor : 4653
Lens: 4MM
View angle: 80°
Pan-tilt: Rotates Horizontal:355° Vertical90°
Preset point quantity: 6
Video compression standard: H.265/20FPS
Video format: PAL
Minimum illumination: 0.01Lux@F2.0VGC ON),O.Luxwith IR
Electronic shutter: Auto
Backlight compensation: Support
Noise reduction: 2D3D
LED quantity: 6pcs white LED + 6pcs Infrared LED
Network: WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).
Network connection: WIFI, AP Hotspot, RJ45 Network port
Night vision: IR-CUT switch Automaticabout 5-8meters (It varies from environment)
White Led can be remote control via APP:
Turn ON Turn OFF Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light intelligently )
Audio: Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream
Network protocol: TCP/IPUDPHTTP DDNSDHCPFTPNTP
Alarm: Motion detection and picture push    AI Human intrusion Detection (optional)
ONVIF Support ONVIF
Storage: TF CardMax 128G);Cloud storage /Cloud disk (optional)
Power input: 12V/2A (not including power supply)
Work environment: Working temperature:-10 ~ + 50    Working Humidity: 95%RH
