| Model |

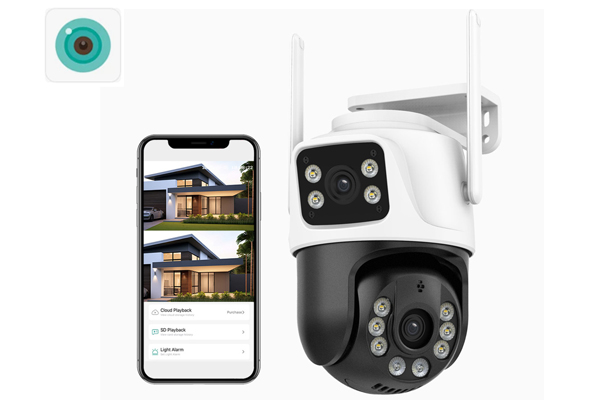

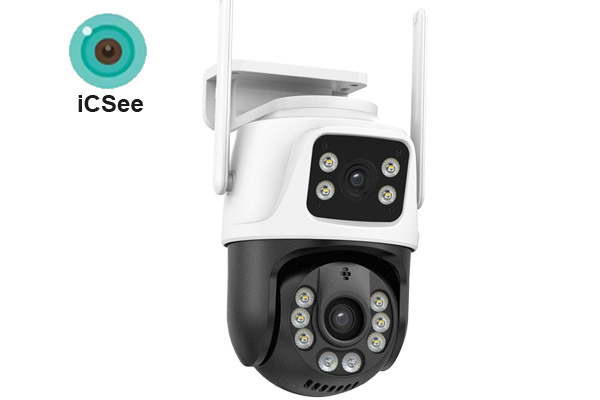

EP6-QQ-6M 【Dual Screen linkage Camera】 |
| master control |
Dual-core 32-bit DSP (XM650V200) |
| sensor |
Two 3 million 1/2.7"Color 2*MIS2009 high-performance CMOS sensors |
| Minimum illumination |
Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR；
Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| shutter |
1/50 (1/60) sec. to 1/10,000 sec. |
| ocal distance |
Gun: F2.0*3.6MM / Ball: F1.4*3.6MM |
| noise reduction |
Support 2D/3D noise reduction |
| Video format |
H.265AI |
| resolving power |
Main resolution: 2304*2592; Sub-resolution: 800 * 896 |
| Frame rate |
12 fps |
| Intelligent analysis |
Support human shape detection |
| Tracking function |
Support human shape detection |
| light source |
8pcs infrared lights + 8pcs white lights |
| Light mode |
Starlight full color/infrared night vision/dual-light warning |
| Two-way voice |
Support |
| Cloud storage |
Support |
| Support Agreement |
Support NETIP protocol, support onvif protocol, support bluetooth distribution network |
| network interface |
10M/100M adaptive Ethernet port |
| Storage interface |
Local TF card (supports up to 128G) |
| Reset key interface |
Support one-click recovery |
| Wireless standard |
IEEE802.11b, 802.11g, 802.11n |
| frequency range |
2.4 GHz ~ 2.4835 GHz |
| power waste |
24W |
| Product size |
98*127*175mm |
| Color box size |
180*160*118mm |
| temperature |
Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] |
| Power Supply |
DC 12V ± 10% |
| weight |
0.65kg（Gross weights） |
