3 SCreen WIFI Camera 12MP





3 SCreen WIFI Camera 12MP


General Features:

  •
  • 3Lens*4MP=12MP
  • Ultra HD image quality
  • 3 lens angle adjustable
  • 360 degree no deadth angle

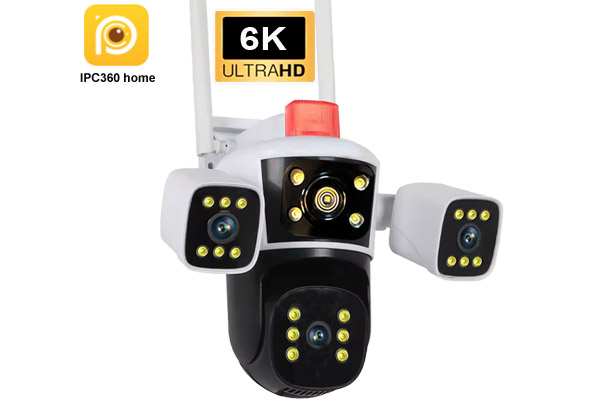

Product name: 3 screen wifi outdoor camera
Product model: P8-Q3-4M
Technical parameter
Processor T31LC
App: IPC360 Home
Lens: 3 lens*4mp=16MP
Image sensor: 1/3″ HD CMOS 2 megapixel CMOS sensor(GC2083)
Resolution: 2560*1440P
Video compression standard H.264
Video frame rate: Max 25 frame
Video playback mode: connected mobile user
Audio input and output: Input built in microphone; output built-in speaker
Built in lens-ballhead camera 3.6mm lens
Built in lens-gun camera 4.0MM lens *2pcs
Focusing method Manual
Infrared night vision effect: 18pcs IR LEDnight vision 30-50 meterspower consumption 3.12WControl the ir light and IR-CUT switch through photoresistance
White light effect 20 white light LED, lighting power consumption 3.6W
Focusing method: Manual
Minimum illumination: 0.1Lux/F1.2
PTZ control: Horizontal rotation 355 degrees vertical 90 degrees
Local storage Max Support  128GB TF card, support 24 hours of video or video alarm
Cloud Storage Support
Support multiple protocols: HTTP,HTPPS,TCP,IPV4,UDP,ICMP,DHCP,DNSONVIF
Wifi: Support IEEE 802.11b/g/n
Motion detection: Support
Video method: Continuous video/Event video
Alarm action Mobile client push screenshot
Firmware upgrade: Remote upgrade can be through the network
Multi-user sharing: Family share to 5 users
Supply voltage: 12V 2A (not including)
Working temperature: -20 degrees C ~50 C
Working environment: IP66 Waterproof , can use indoor and outdoor
