| Product name: |

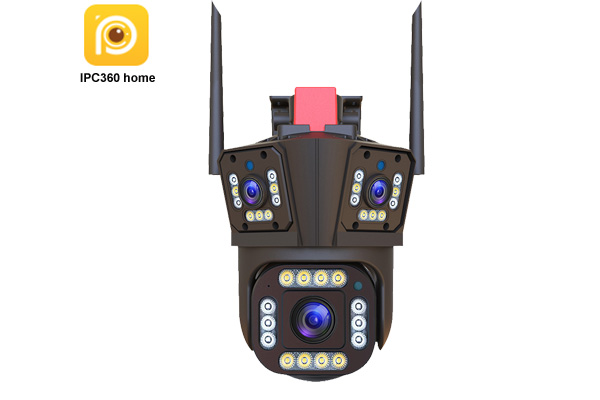

4 Inch 3 Screen outdoor wifi camera |
| Product model: |
P11-Q3-4M |
| Technical parameter |
| Platform: |
IPC360Home |
| |
3lens *4MP=12MP |
| Image sensor: |
1/4″ HD CMOS 1 megapixel CMOS sensor(GC1084) |
| Manual video format： |
2560*1440 |
| Processor： |
V853S |
| Video compression standard： |
H.264 |
| Video frame rate: |
Max 25 frame |
| Video playback mode: |
Connected Mobile User |
| Audio input and output: |
Input： built in microphone; output： built-in speaker |
| Built in lens-ballhead camera： |
3.6mm |
| Built in lens-gun camera： |
3.6mm lens * 2pcs |
| Focusing method： |
Manual |
| Infrared night vision effect: |
12pcs IR LED，night vision about 30 meters，power consumption 3.24W；IR-CUT switch through photoresistance Automatic |
| White light effect： |
25 white light lamps, lighting, power consumption 2.76W |
| Focusing method: |
Manual |
| Minimum illumination: |
0.1Lux/F1.2 |
| PTZ control: |
Horizontal rotation 355 degrees vertical 90 degrees |
| Local storage： |
Max Support 128GB TF card, support 24 hours of video or video alarm |
| Cloud Storage： |
Support |
| Support multiple protocols: |
HTTP,HTPPS,TCP,IPV4,UDP,ICMP,DHCP,DNS |
| Wifi: |
Support IEEE 802.11b/g/n |
| Motion detection: |
Support |
| Video method: |
Continuous video/Event video |
| Alarm action： |
Mobile client push screenshot |
| Firmware upgrade: |
Remote upgrade can be through the network |
| Multi-user sharing: |
share to 5 users |
| Supply voltage: |
12V 2A (Not including) |
| Working temperature: |
-20 degrees C ~50 C |
| Working environment: |
IP66 Waterproof , can use indoor and outdoor |
