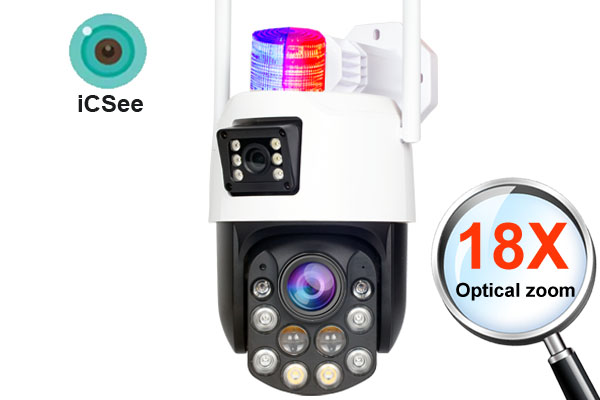

Dual lens 18X Zoom PTZ Camera





Dual lens 18X Zoom PTZ Camera


General Features:

  •
  • Dual lens monitoring 360° no deadth angle
  • 6-36mm lens , 18X optical zoom
  • Clear 2 ways audio
  •  iCsee app , 6MP(3MP+3MP)








Model NO.

EP05-QQ-6M-18X



Camera

Image Sensor

3MP  1/2.8" CMOS

Solution

XM650V200+2236P+2009

Mini Illumination

Color 0.01Lux@F1.2(AGC ON), 0 Lux with IR

Black and White 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

Digital Noise Reduction

2D/3D DNR

Image Settings

Image Flip

Function

remote monitoring; push message after human detection alarm; image capture

Lens

Lens

4mm  6~36 mm ±5%

Rotate Range

Pan rotation:0~240º, Tilt rotation:0~90º

Rotation

Angle

Manual control of the rotation adjustment according to the scene to be monitored

Preset Point

Support

Video

Image Output

Main Stream: 2304*2592@12fps

Sub-Stream: 640*720@12fps

Audio

Audio Compression

G.711; Support Two Way Audio

Al+

General

Human detection, Human tracking, Intrusion alarm, Line crossing detection

Alarm

SD card recording, APP alarm, Sound and light alarm

APP

Mobile View

Android, IOS ( ICSEE)

Light

Warm Light Distance

Up to 90 m

IR Distance

Up to 90m

LEDS

4 PCS IR LEDS +4 PCS LASER  LEDS+ 5 PCS White Lights

Lighting mode

Starlight full color; Infrared night vision; Intelligent alert

General

Power Supply

DC 12V±25

Power Connector

Φ5.5mm

Power consumption

≤12w

Operating Conditions

(-25℃ ~ 45℃) humidity 95% or less (non-condensing)

Factory Data Reset

Support

Material

Plastic+Metal

Dimension

Product205*208*328mm

Packing310*310*440mm
