| system |
Model |

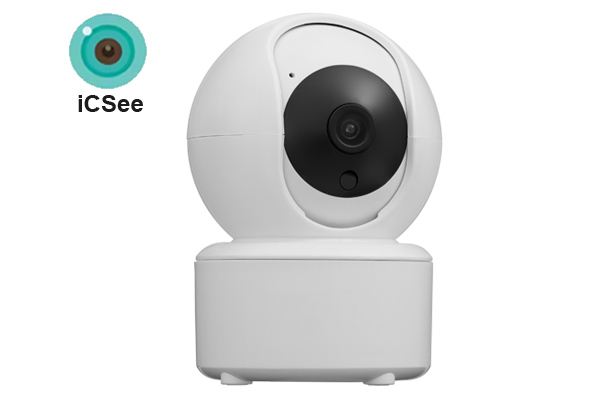

Q7-2M |
| Main Processor |
Dual-core 32-bit DSP (XM530), pure hard compression, watchdog |
| image sensor |
2MP 1/3 F37 high-performance CMOS sensor |
| Operation System |
Embedded LINUX OS system |
| Video Compression |
Smart H.265X |
| APP |
ICSEE(support andriod and IOS) |
| Video |
High Definition |
2MP |
| Image resolution |
1920*1080 |
| Minimum illumination |
0.1LUX/F1.2 |
| Lens |
3.6mm |
| Perspective |
92° |
| |
Turn video |
Upside down/Turn around |
| lighting |
Light control mode |
Infrared night vision |
| Number of lights |
10 PCS IR LED |
| PTZ |
PTZ control |
Rotation Angle level :355°; Vertical: 90 ° |
| Turn PTZ |
Upside down/Turn around |
| Audio |
Coding standard |
G.711 |
| Mitou |
Support |
| Two-way Speech |
Support |
| Record management |
Video file size |
≈6G/day |
| Record Mode |
Manual record, motion detection record, scheduled record, alarm record |
| Video storage |
TF Card/Cloud |
| storage |
support TF card（max 128GB) or cloud storage |
| Remote playback |
Support |
| Image capture |
Support |
| Network |
WIFI |
2.4G WIFI 802.11b/g/n |
| Pairing |
Sweep QR code，Network Cable connection，AP Hotspot Addition |
| Network Protocol |
Support TCP/IP, ONVIF, RTSP |
| extension |
Reset key |
Support |
| Human tracking |
Support |
| 360degree coordinate positioning |
Support |
| power supply |
Power |
DC 5V 1.6A |
| power interfac |
Micro Type-A |
| work environment |
Suitable place |
outdoor、Home、shop、School、factory； |
| Installation mode |
Wall hanging, lifting, flat |
| Working Temperature |
-20℃－＋55℃ |
| Working humidity |
10%－90% |
