| Model: |

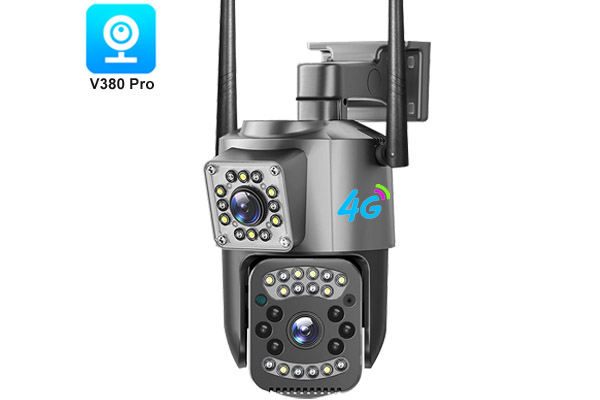

SC03-G |
| APP: |
V380 Pro |
| System structure: |
Embedded Linux system, ARM chip structure |
| Chip: |
KM01D |
| Resolution: |
2+2=4MP |
| Sensor Resolution: |
1/2.9" MIS2008*2 |
| Lens: |
2*4MM |
| View angle: |
2*80° |
| Pan-tilt: |
Rotates Horizontal:355° Vertical：90° |
| Preset point quantity: |
6 |
| Video compression standard: |
H.265/15FPS |
| Video format: |
PAL |
| Minimum illumination: |
0.01Lux@（F2.0，VGC ON),O.Luxwith IR |
| Electronic shutter: |
Auto |
| Backlight compensation: |
Support |
| Noise reduction: |
2D、3D |
| LED quantity: |
Bullet camera:6pcs white LED + 5pcs Infrared LED
PTZ camera: 8pcs white LED + 8pcs Infrared LED |
| Network connection: |
Suport 4G-SIM card and adapt to RJ45 Network port |
| Band |
B1/3/5/8/38/39/40/41 |
| Night vision |
IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision auto , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ) |
| Audio: |
Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream |
| Network protocol: |
TCP/IP、DDNS、DHCP |
| Alarm: |
①Motion detection and picture push ②AI Human intrusion Detection |
| Storage: |
TF Card（Max 128G）；Cloud storage /Cloud disk (optional) |
| Power input: |
12V/2A (not including power supply) |
| Work environment: |
Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
