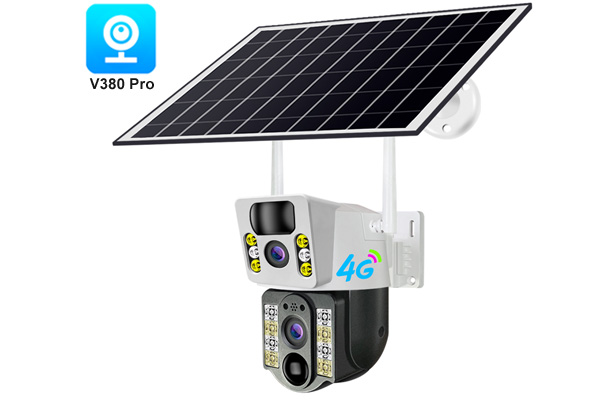

Dual lens solar 4G camera





Dual lens solar 4G camera


General Features:

  •
  • 2 ways audio
  • 2 Lens viewing in 3 screen
  • Support 4G sim card
  • solar power, long battery life
  • PIR Function, energy save








Model Number VCS03-4G
DSP AK KM01N
Operating system Android, IOS
APP: V380 PRO
Sensor: 1/2.9" Progressive Scan CMOSGC3003*2
Video compressed format: H.265
Resolution: 2560*1296P
4G Network : 4G-BAND B1/3/5/8/38/39/40/41
Detection method: PIR + Radar dual induction detection
Detection distance: 0~12M
Detection angle: 120°
Alarm method: Double induction confirmation and push alarm information mobilephone
Pan-tilt: Horizontal: 355 °,  vertical: 90°
Rotate speed Horizontal 55°/seconds,   vertical 40°/seconds
Full color night vision: minimum illumination 0.00001LUX
Infrared Led: Infrared LED distance: 30M ,effective distance :10M
White Led: White LED  distance: 30M, effective distance :10M
Built-in speaker: 3W
Built-in microphone: Audio pick-up eara about 20M
Lens: fixed-focus 4mm+4mm
Angle: 80°
Cloud storage: Cloud Storage (Alarm video )
Local storage: TF cardMax 128G
power supply mode : solar panel + 3.7V 18650 battery
Solar panel power: 10W
Battery capacity  Built-in 12000mah battery
Operating power daytime: 350-400ma,Night time:500-550ma
Standby power 5 mA
work environment: IP66 Waterproof,can use indoor and outdoor
Working temperature:  -30°~+50°
Working humidity: 0%~80%RH
