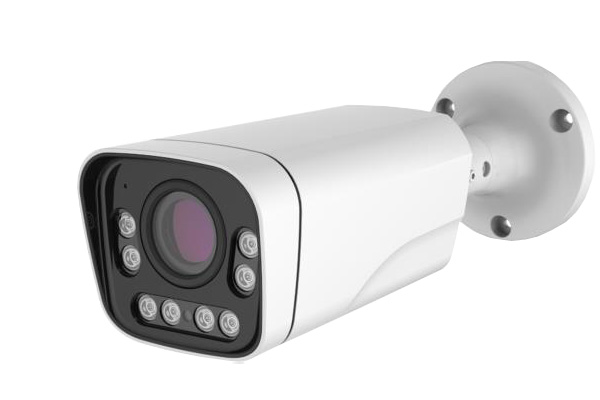

18X Zoom POE IP Camera |
|
| |
General Features： |
|
| |
-
- 6-36mm lens
- 18X optical zoom function
- 2 ways audio intercome
- support TF Card storage
|
| |
|
| |
|
|
|
| |
|
|
|
| Camera |
Video |
| Sensor |
1/2.8“ 3MP Progressive-scan CMOS Sensor |
Compression |
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Effective Pixels |
2560(H) x 1440 (V) |
Resolution |
4MP 2560*1440 / 3MP 2048*1536 / 2MP 1920*1080 |
| Min.Illumination |
color 0.01Lux@F1.2,black/white 0.01Lux@F1.2 |
Frame Rate |
4MP 2560*1440@25fps;
3MP 2048*1536@25fps; 2MP 1920*1080@25fps; sub-stream: 800*448@25fps; |
| Electronic Shutter Speed |
Auto, Manual; 1/3 s to 1/100000 s |
Bit Rate Control |
CBR/VBR |
| S/N Ratio |
More than 50 dB |
Bit Rate |
H.264: 32 K to 10240 Kbps, H.265: 12 K to 8448 Kbps |
| IR LEDs |
4pcs IR LED + 4pcs White LED |
Day/Night |
Auto (ICR), Color, B/W |
| IR Distance |
Distance up to 30-60M |
BLC Mode |
BLC, HLC, D-WDR (120 dB) |
| IR On/Off Control |
Auto, Manual |
White Balance |
Auto, Natural, Street Lamp, Outdoor, Manual |
| Lens |
Auxiliary Interface |
| Lens Type |
Electronic Motorized Zoom |
Reset Button |
Supported |
| Focal Length |
Electronic Motorized 6-36MM Zoom Lens |
AI function |
| Maximum Aperture |
F2.0 |
Human Detection |
Support |
| Angle of View |
26° ~90° |
Rule Setting |
Cordon / Alert Area |
| Network |
Show Traces |
Support |
| Ethernet |
RJ-45 (10/100 Base-T) |
Environmental |
| Protocol |
HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,IGMP, SNMP |
Operating Conditions |
–30° C to +60° C (–22° F to +140° F)
Less than 95% RH |
| ONVIF |
Support 2.4 version |
Storage Conditions |
–30° C to +60° C (–22° F to +140° F)
Less than 95% RH |
| Max. User Access |
10 Users |
Humidity |
humidity is less than 90% (without condensate) |
| Web Viewer |
IE, Chrome, Firefox, Safari |
Ingress Protection |
Waterproof (IP66 Rated), Outdoor Use |
| Management Software |
Supported |
Construction |
| Mobile Operating System |
OS, Android |
Dimension |
233(L) x76(W) x68(H)mm |
| Electrical |
Net Weight |
1100G |
| Power Supply |
12 VDC, 1 A or PoE (802.3af Class 0) |
Gross Weight |
1300G |
| Power Consumption |
< 5.5 W |
Material |
Metal |
|
|
