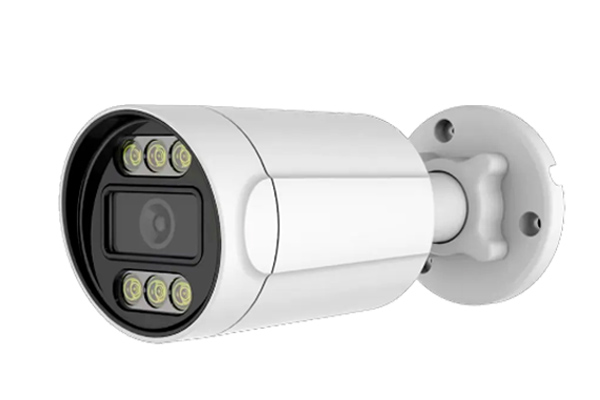

Bullet IP Camera |
|
| |
General Features： |
|
| |
-
- support small order OEM
- 4MP/5MP/8MP optional
- IP66 Waterproof Mental housing
- IR led/ Warm LED optional
|
| |
|
| |
|
|
|
| |
|
|
|
| Model NO: |
IPC-HAU60-RS500W |
| Camera |
| Image CMOS Sensor |
1/2.7" SC5335P |
| DSP |
337De |
| Resolution |
5.0M Pixel |
| Effective Pixels |
2592(H)*1944(V) |
| Electronic Shutter |
1/50-1/10000Sec |
| Motion Detection |
Support |
| Scanning System |
Progressive |
| Sync System |
External |
| Privacy Masking |
Support, Up to 4 areas |
| S/N Ratio |
≥52dB |
| White Balance |
Auto/Manual |
| Gain Control |
Auto/Manual |
| Digital Noise Reduction |
Support 2D/3D |
| Wide Dynamic Range |
D-WDR |
| Recording Mode |
NVR/NAS/CMS/Web |
| Video and Audio |
| Video Compression |
H.265 |
| Video Output |
Main stream:
2592*1944@25fps |
| Audio Processing |
G.711,support bidrectional talk,audio&video synchronization |
| Audio interface |
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
(Built-in High Sensitive Microphone) |
| Lens |
| Focal Length |
3.6mm |
| Focus Control |
Fixed |
| Lens Type |
M12 |
| Lens Pixels |
5.0M Pixels |
| Auto Iris Support |
N/A |
| Night Vision |
| Infrared LED |
4pcs Warm Light LED, 25-30M IR Range |
| Low illumination |
0.01Lux @F2.0
0 Lux with IR LED on |
| Day & Night |
Support IR-CUT |
| Network |
| Ethernet |
RJ-45 (10/100Base-T)1*RJ45 10/100M adaptive Ethernet port |
| Network Protocol |
support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| ONVIF |
Support ONVIF |
| Smart Phone |
Support iPhone, iPad, Android and Windows |
| Browser |
Support IE, Chrome, Firefox, Safari |
| Sotware |
Support App(iOS，Android), Window CMS software |
| General |
| Housing |
Al-Alloy Case, White Color Housing |
| 48V POE |
YES |
| Working Temperature |
-10℃～50℃ |
| Weatherproof Std. |
Support Waterproof, IP66 |
|
|
