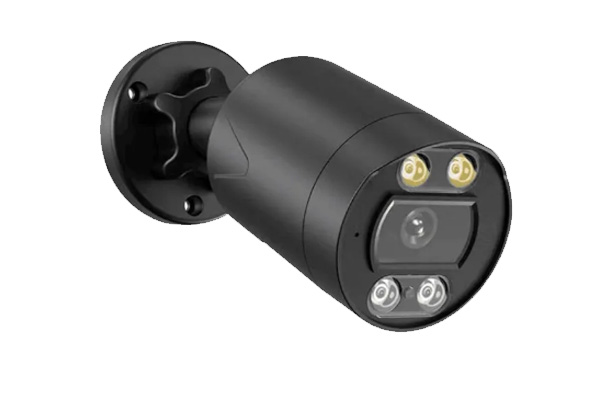

Black color bullet IP Camera





Black color bullet IP Camera


General Features:

  •
  • IR led/ Warm LED optional
  • support small order OEM
  • 4MP/5MP/8MP optional
  • IP66 Waterproof Mental housing








Model NO: IPC-HAR60-RS500W
Camera
Image CMOS Sensor 1/2.7" SC5335P
DSP 337De
Resolution 5.0M Pixel
Effective Pixels 2592(H)*1944(V)
Electronic Shutter 1/50-1/10000Sec
Motion Detection Support
Scanning System Progressive
Sync System External
Privacy  Masking Support, Up to 4 areas
S/N Ratio 52dB
White Balance Auto/Manual
Gain Control Auto/Manual
Digital Noise Reduction Support 2D/3D
Wide Dynamic Range D-WDR
Recording Mode NVR/NAS/CMS/Web
Video and Audio
Video Compression H.265
Video Output Main stream:
2592*1944@25fps
Audio Processing G.711,support bidrectional talk,audio&video synchronization
Audio interface 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
(Built-in High Sensitive Microphone)
Lens
Focal Length 3.6mm
Focus Control Fixed
Lens Type M12
Lens Pixels 5.0M Pixels
Auto Iris Support N/A
Night Vision
Infrared LED 4pcs Warm Light LED, 25-30M IR Range
Low illumination 0.01Lux @F2.0
0 Lux with IR LED on
Day & Night Support IR-CUT
Network
Ethernet RJ-45 (10/100Base-T)1*RJ45 10/100M adaptive Ethernet port
Network Protocol support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
ONVIF Support ONVIF
Smart Phone Support iPhone, iPad, Android and Windows
Browser  Support IE, Chrome, Firefox, Safari
Sotware Support App(iOSAndroid),  Window CMS software
General
Housing Al-Alloy Case, White Color Housing
48V POE YES
Working Temperature   -10℃~50
Weatherproof Std. Support Waterproof, IP66
